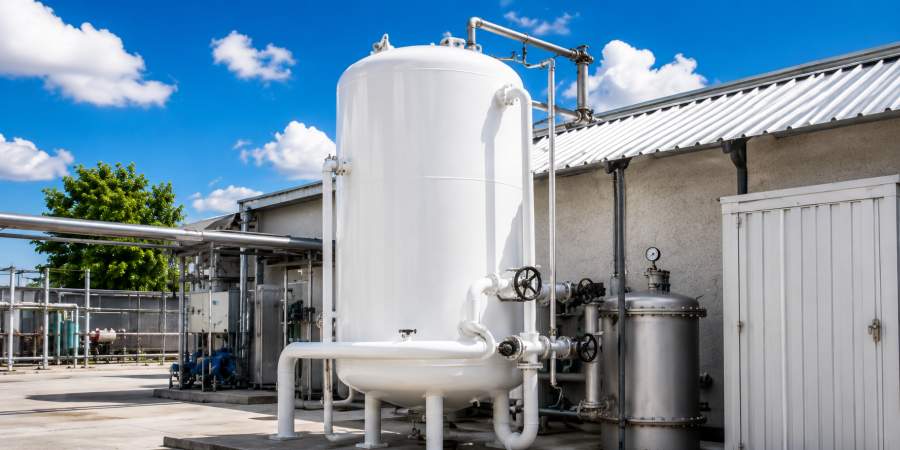

Water Softening Plants
Industrial & Commercial Water Softening Plants
Water is classified as "hard" when it contains excessive concentrations of dissolved Calcium ($Ca^{2+}$) and Magnesium ($Mg^{2+}$) ions. Left untreated, hard water creates persistent operational challenges that disrupt industrial efficiency, damage equipment, and significantly drive up maintenance costs.
Our advanced Water Softening Plants are engineered to consistently yield high-purity soft water with low residual hardness (under 5 ppm commercial zero) throughout the entire service cycle. Utilizing high-capacity synthetic cation exchange resins, our systems effectively exchange scale-forming hardness minerals with harmless sodium ions, protecting your critical infrastructure from scaling and corrosion.
Impact of Untreated Hard Water
Ignoring hard water in utility and process applications leads to critical operational issues:
-
Pipe & Vessel Scaling: Mineral buildup restricts flow rates, increases pressure drops, and clogs lines.
-
Thermal Inefficiency: Scale accumulation on heating and cooling elements drastically reduces thermal heat transfer, spiking energy bills and causing frequent equipment breakdowns.
-
Surface Staining: Deposition of white calcified films on glass, process fixtures, and water taps.
-
Chemical Inefficiency: Hard water neutralizes soaps and laundry detergents, requiring higher chemical dosing and driving up operational costs in wash processes.
Ion Exchange Process & Mechanism
Water softening relies on the continuous exchange and removal of $Ca^{2+}$ and $Mg^{2+}$ ions via high-purity food/industrial grade resin matrixes contained within heavy-duty pressure vessels.
Step-by-Step Softening Cycle
-
Primary Softening Cycle: Raw water passes through a mineral pressure vessel containing negatively charged synthetic resin beads that aggressively attract and capture positively charged calcium and magnesium ions.
-
Ion Substitution: Hardness ions are trapped on the resin surface while sodium ($Na^+$) ions are released into the treated water flow.
-
Brine Regeneration: Once resin saturation is reached, the system flushes a concentrated Sodium Chloride ($NaCl$) solution from the brine tank. The high-concentration sodium ions displace accumulated calcium and magnesium, flushing them safely to waste.
-
Fast Rinse & Service Return: After a brief freshwater rinse, the resin bed is fully recharged and ready for the next operational batch cycle.
Key Technical Features
- Automatic & Manual Regeneration Options: Configurable with automatic multiport valves or PLC controllers for hassle-free operation.
- Guaranteed Treated Water Quality: Consistently achieves total hardness levels below 5 ppm (Commercial Zero).
- Corrosion-Resistant Fabrication: Constructed with heavy-duty FRP, Stainless Steel (SS304/SS316), or rubber-lined mild steel vessels for long operational life.
- Compact Footprint: Modular, skid-mounted design for easy installation, transportability, and minimal site space utilization.
- Low Energy & Salt Consumption: Highly optimized fluid hydraulics ensure reduced wash-water waste and low power consumption.
- High Capacity Scalability: Available in standard and custom engineering variants with flow capacities up to 200 $m^3$/hr.
Industrial & Commercial Applications
Our custom-tailored water softening systems provide critical pre-treatment across a broad spectrum of industries:
- Boiler Feed Water Pre-treatment
- Cooling Tower Make-Up Water
- HVAC & Air Conditioning Plants
- Pharmaceutical & Food Processing
- Textile Dyeing & Wet Processing
- Beverage & Distillation Industries
- Hospitals, Hotels & Commercial Laundries
- Chemical Processing Units
- Power Generation Plants
- Ice Manufacturing Facilities
- Product Finishing & Electroplating
Why Choose Our Water Softeners?
As a leading manufacturer of water softening solutions, we offer turnkey solutions—from custom design and fabrication to seamless commissioning and after-sales support. Our plants deliver maximum efficiency, extended equipment service lives, and low maintenance overheads at competitive price points.
